Diagnostix

Precision Diagnostics for EVs

Diagnostix is an easy-to-set-up, non-invasive data acquisition tool designed for independent analysis of vehicle performance and telemetric data. It is immensely useful for cost-effective vehicle design optimization and compliance preparation. Diagnostix seamlessly pairs with any Android device equipped with Bluetooth 2.1 or greater and works flawlessly with its bundled application, providing a comprehensive diagnostic experience at your fingertips.

Diagnostix Use Cases

Empower Your Vehicle Troubleshooting

  • •Get instant insights into your vehicle’s health and performance, right at your fingertips.
  • •Identify and resolve potential issues before they turn into costly breakdowns.
  • •Plan your trips with confidence using real-time battery range prediction and usage optimization.
  • •Explore smarter with terrain-aware navigation and detailed route tracking for better planning and efficiency.
  • •Empower yourself with data-driven decision-making and full control over your electric rickshaw’s condition.

Detailed Specifications

Diagnostix packs a powerful punch in a compact design. It provides comprehensive data for precise analysis and efficient maintenance.

  • Current/Voltage Measurement:3 Channels
  • Voltage Sensing:Up to 600V DC and 1100V AC
  • Current Sense:Non-contact up to 200A
  • Battery State of Charge (SoC):State-of-the-art algorithm for monitoring
  • Motion Tracking:3-axis Gyroscope and Accelerometer
  • Thermal Monitoring:2 Temperature sensors
  • Digital Input Channels:4 for RPM/sensors, 6 for on/off detection
  • Data Output Options:Wired Serial Port (UART) & Real-time Bluetooth streaming
  • Connectivity:Pairs with any Android device with Bluetooth 2.1 or greater
  • App Compatibility:Works seamlessly with bundled app

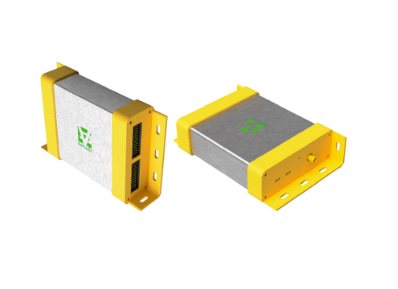

Diagnostix Device

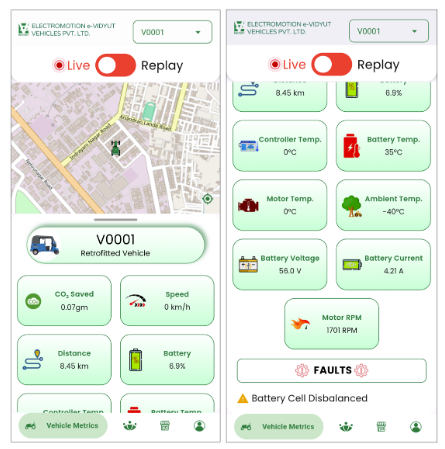

Diagnostix Android App Interface

Android App

An easy-to-set-up, non-invasive data acquisition tool for independent analysis of vehicle performance and telemetric data. Useful for cost-effective vehicle design and compliance preparation. Pairs with any android device with Bluetooth 2.1 or greater and works seamlessly with the bundled app.

Features:

  • •Graphical Display of Real-Time Data in clustered and individual data points.
  • •Calibrate once and save multiple custom vehicle profiles for easy connections.
  • •View Battery SOC, Voltage, Current, Power Consumption and other important data points right on your phone.
  • •View vehicle location with road gradient on in-built maps.
