About Retrokit

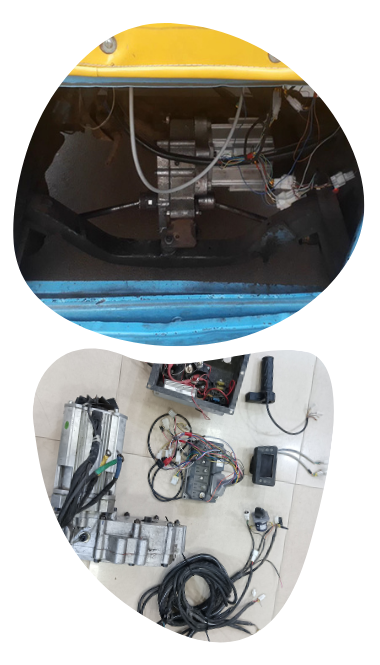

Electromotion RetroKitTM

An Instant Retrofittint kit for Passenger 3-Wheeler Autorickshaws


Key Specifications:
  • Target Vehicle: Bajaj RE 2-Stroke/4-Stroke Petrol/Diesel/CNG/LPG.
  • Battery Type: Lithium Iron Phosphate (LFP), Detachable, 1800 cycles rated.
  • Nominal Battery Energy Capacity: 6.4Kwh.
  • Primary Electrical System Voltage: 60v.
  • Motor Type: Permanent Magnet Brushless DC Motor.
  • Rated Power: 3.0Kw.
  • Peak Power Output: 6Kw.
  • Max Vehicle Speed: 60Kmph.
  • Peak Torque (after gear reduction): 60Nm.
  • Gradeability: 16% at D+3 Load.

Additional Features:
  • 2 Speed Modes - ECO and Performance.
  • Digital Driver Console with Accurate State-of-charge.
  • Remaining KMs information based on usage statistics and SOC.
  • Battery and kit with integrated navigation for vehicle and passenger safety.
  • Seamless integration into existing engine position. No structural modification required.
  • Detachable battery, with future scope for swappability and modularization.

Installation:

Ease of installation:
  • - Installs seamlessely on existing mounting locations for engine. No additional holes or modification required.
  • - Can be installed within 2 hours by a trainned retrofitting agent.

Novelty of retrokitTM geartrain:
  • - Unique gearbox design, supports various existing differential gears and motor types. Can be mounted on various vehiclemodels and provides option for easy upgradability.
  • - Patent-Pending pinion design, easily scalable to other gear ratios and vehicle types without modifying the gearbox cover.

Installation procedure and after-sales service:
  • - Will be installed by company authorized and trained etrofiting agents at the existing autorickshaw mechanic's garages.
  • - Retrofitting agents to be provided with installation and calibration tools for optimum retrofit quality assurance.
  • - Most waer-prone geartrain components to be compatible with existing spares for the rickshaw. After sales service to be done only by retrofitting agents.
